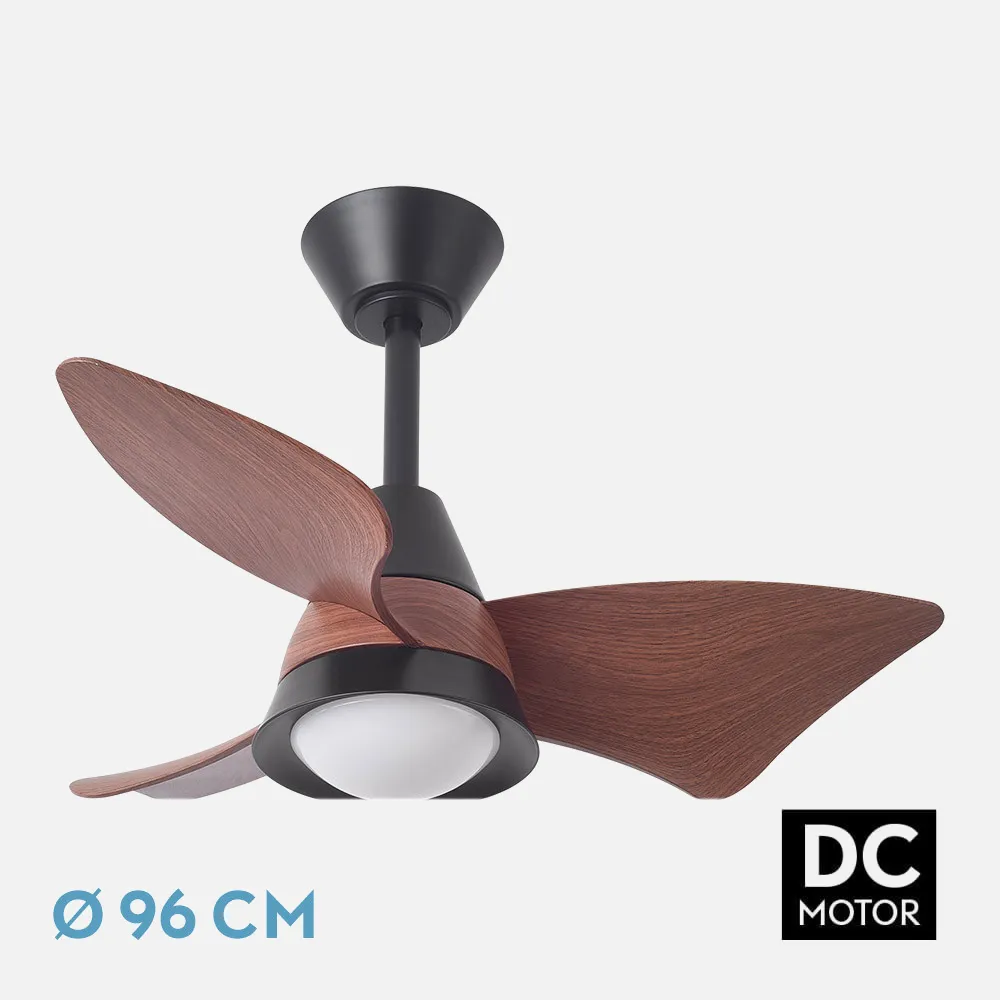

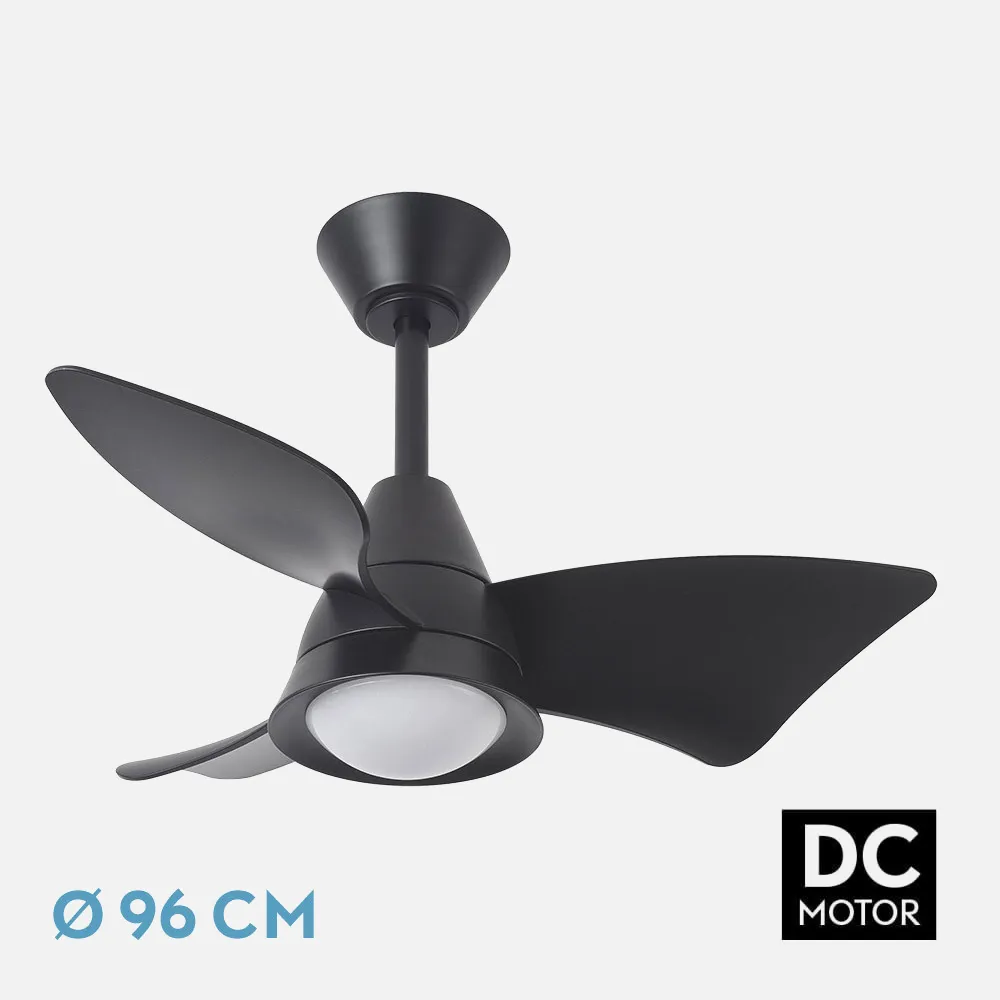

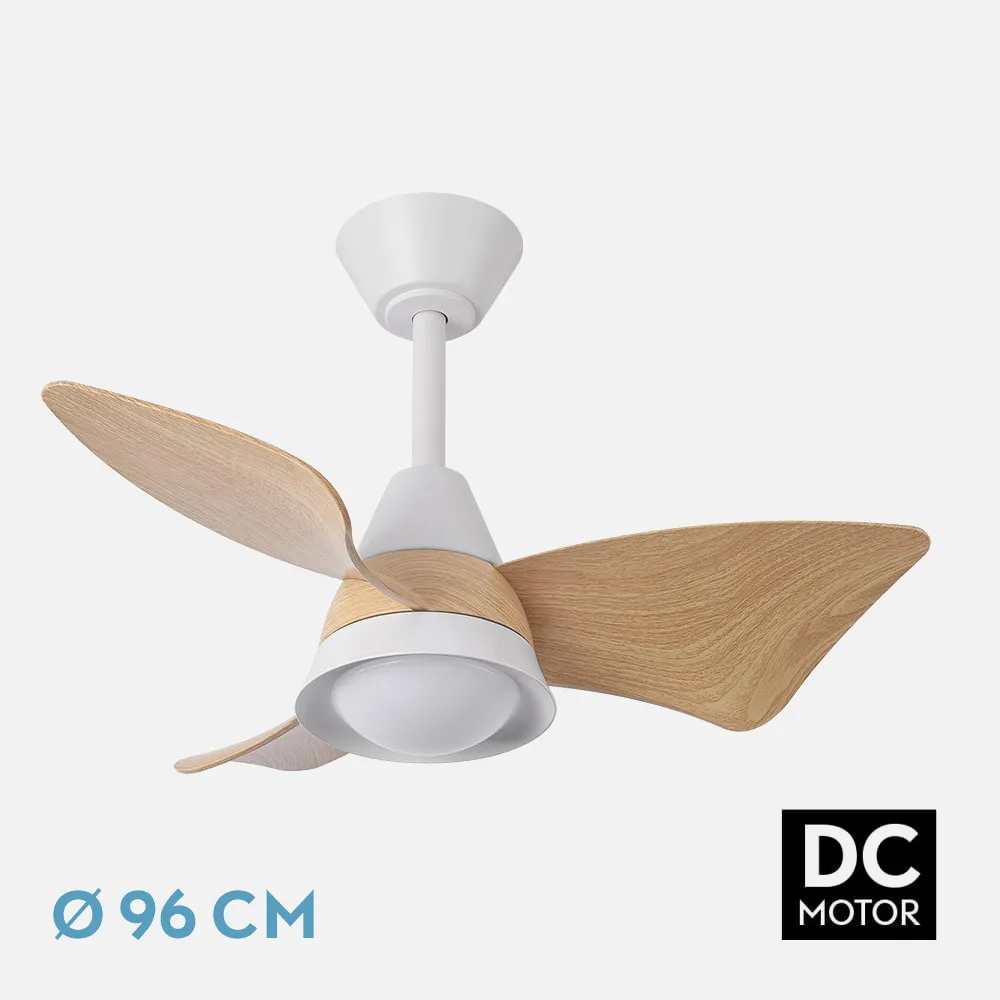

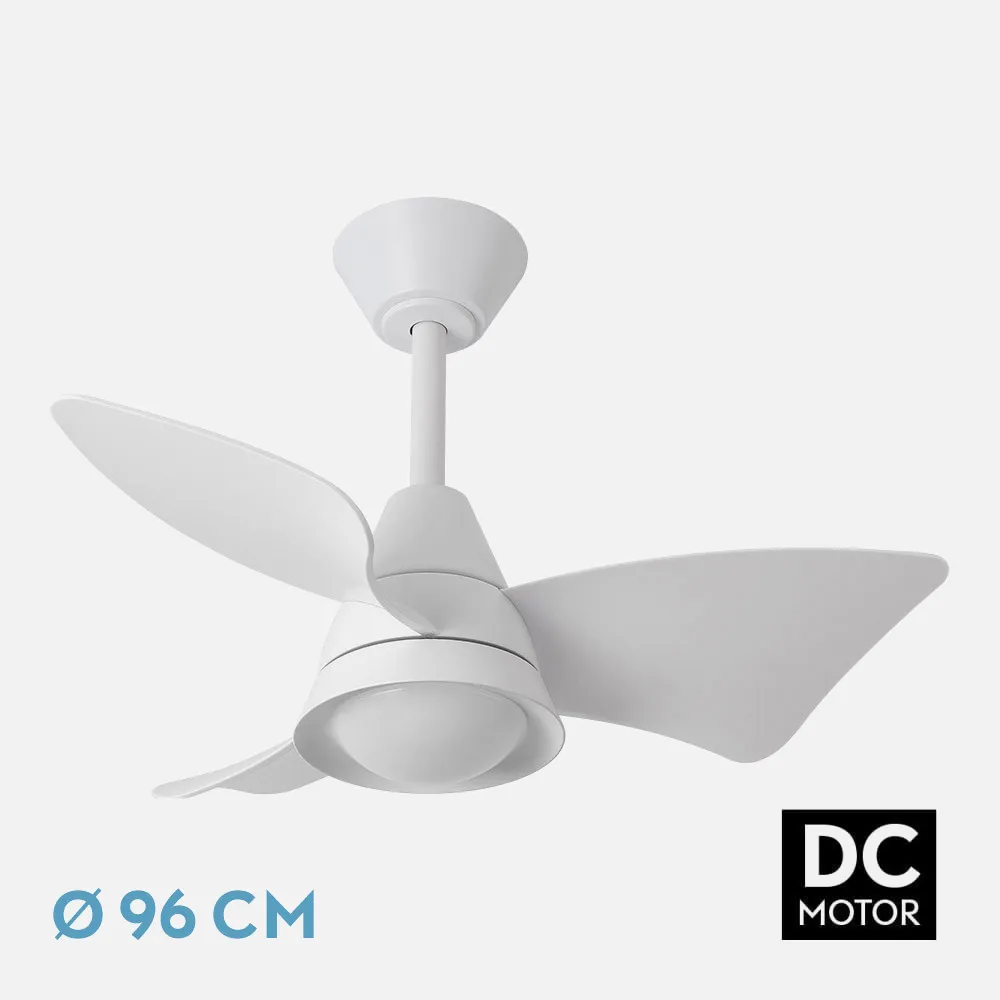

JAGUAR

Ventiladores

Number of sails:

3 Aspas

Number of adjustable speeds:

6 Veloc.

Control of air for summer or winter:

Summer and Winter

Measured of the diameter (cm.):

96 cm.

Type of engine:

Engine DC

Timer fan:

1H < 8H

Size of the diameter:

Small: Until 107 Average

Diameter open:

96 cm.

Luz

Light colour:

Cool, Cool and Natural

Lumens:

3000 Lm.

Power:

30 W

Projection of the light:

Luz diffuse general

Light temperature:

3000-4500-6500 ºK

Type of illumination:

Technology LED integrated

Colour of light dimmable:

Colour of selectable light in 3 positions

Dimmable:

Dimmable

General

Colour:

White

Material:

Metal / ABS / Polycarbonate

Use (Indoor/Outdoor):

Recommended for indoors

Type of installation:

In surface

Remote control included:

Remote control included

Save of energy:

Saving of Domestic

Use:

Energy

Memory:

Memory of colour incorporated

Certified CE:

Si

Certified Recycling:

Si

CRI:

>85

Temperatures / Colour of light:

Three temperatures of Luz

Dimensiones

Dimensions (height x width x depth):

48X96X96 cm.

Net weight:

3270 gr.

Gross weight:

4270 gr.

Packaging dimensions:

63X30X21 cm.

Información Técnica

Voltage:

186 - 265 V

Intensity dimmable:

Intensity dimmable

Otros

Apt for ceiling bent:

Himself

Velocidad

_Speed_1_Consummate:

8 W

_Speed_2_Consummate:

11 W

_Speed_3_Consummate:

15,5 W

_Speed_4_Consummate:

20 W

_Speed_5_Consummate:

24 W

_Speed_6_Consummate:

32 W

_Speed_1_RPM:

160 rpm

_Speed_2_RPM:

170 rpm

_Speed_3_RPM:

180 rpm

_Speed_4_RPM:

190 rpm

_Speed_5_RPM:

200 rpm

_Speed_6_RPM:

210 rpm

_Speed_1_Flow Air:

3408 m3

_Speed_2_Flow Air:

4016 m3

_Speed_3_Flow Air:

4656 m3

_Speed_4_Flow Air:

5296 m3

_Speed_5_Flow Air:

5944 m3

_Speed_6_Flow Air:

6884 m3

_Speed_1_Level Sound:

20 dB

_Speed_2_Level Sound:

25 dB

_Speed_3_Level Sound:

30 dB

_Speed_4_Level Sound:

35 dB

_Speed_5_Level Sound:

40 dB

_Speed_6_Level Sound:

45 dB
