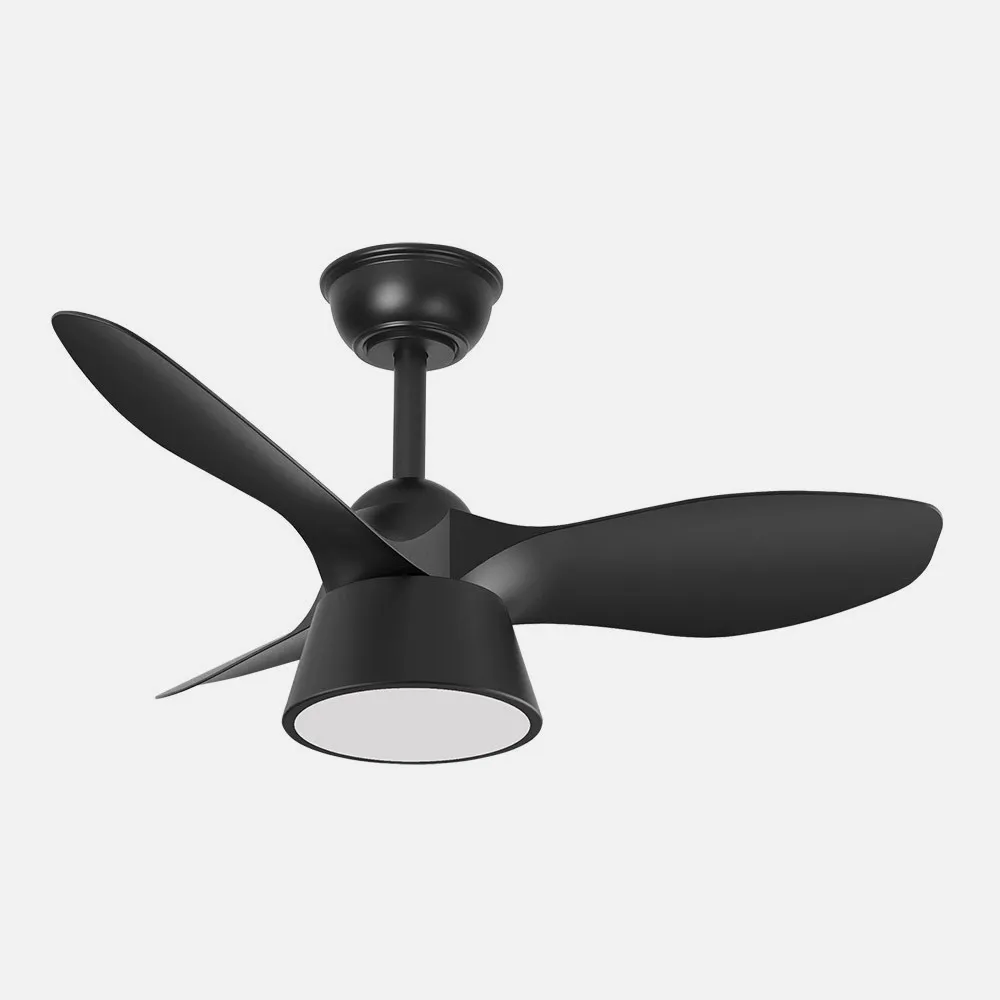

CUBICO

Ventiladores

Number of sails:

3 Aspas

Number of adjustable speeds:

6 Veloc.

Control of air for summer or winter:

Summer and Winter

Measured of the diameter (cm.):

82 cm.

Type of engine:

Engine DC

Timer fan:

1H < 4H

Includes Tija of two dimensions:

10cm and 25cm

Size of the diameter:

Small: Until 107 Average

Diameter open:

82 cm.

Luz

Light colour:

Cool, Cool and Natural

Lumens:

2680 Lm.

Power:

36 W

Projection of the light:

Luz diffuse general

Light temperature:

3000-4500-6000 ºK

Type of illumination:

Technology LED integrated

Colour of light dimmable:

Colour of selectable light in 3 positions

General

Colour:

Black

Material:

Metal / ABS / Polycarbonate

Use (Indoor/Outdoor):

Recommended for indoors

Type of installation:

In surface

Remote control included:

Remote control included

Save of energy:

Saving of Domestic

Use:

Energy

Memory:

Memory of colour incorporated

Certified CE:

Si

Certified Recycling:

Si

CRI:

>85

Temperatures / Colour of light:

Three temperatures of Luz

Dimensiones

Dimensions (height x width x depth):

31/46X82X82 cm.

Net weight:

3225 gr.

Gross weight:

3785 gr.

Packaging dimensions:

25x22x39,5 cm.

Información Técnica

Voltage:

220-240 V

Otros

Apt for ceiling bent:

Himself

Velocidad

_Speed_1_Consummate:

7,2 W

_Speed_2_Consummate:

9,5 W

_Speed_3_Consummate:

12.2 W

_Speed_4_Consummate:

16 W

_Speed_5_Consummate:

19.3 W

_Speed_6_Consummate:

30 W

_Speed_1_RPM:

180 rpm

_Speed_2_RPM:

200 rpm

_Speed_3_RPM:

220 rpm

_Speed_4_RPM:

240 rpm

_Speed_5_RPM:

260 rpm

_Speed_6_RPM:

280 rpm

_Speed_1_Flow Air:

4100 m3

_Speed_2_Flow Air:

4950 m3

_Speed_3_Flow Air:

6170 m3

_Speed_4_Flow Air:

6980 m3

_Speed_5_Flow Air:

7650 m3

_Speed_6_Flow Air:

8780 m3

_Speed_1_Level Sound:

23 dB

_Speed_2_Level Sound:

26 dB

_Speed_3_Level Sound:

29 dB

_Speed_4_Level Sound:

32 dB

_Speed_5_Level Sound:

35 dB

_Speed_6_Level Sound:

37 dB
